LAB 3: Synchronous Digital Counter

On 11th January 2024, me and my partner have done lab activity that required our understanding to synchronous of digital counter which we need to used flip flop concept. Before the day of the lab activity, we meet up to make do the circuit using Deeds where the circuit was a little bit complicated and confiusing due to the presence of the JK flip flop.

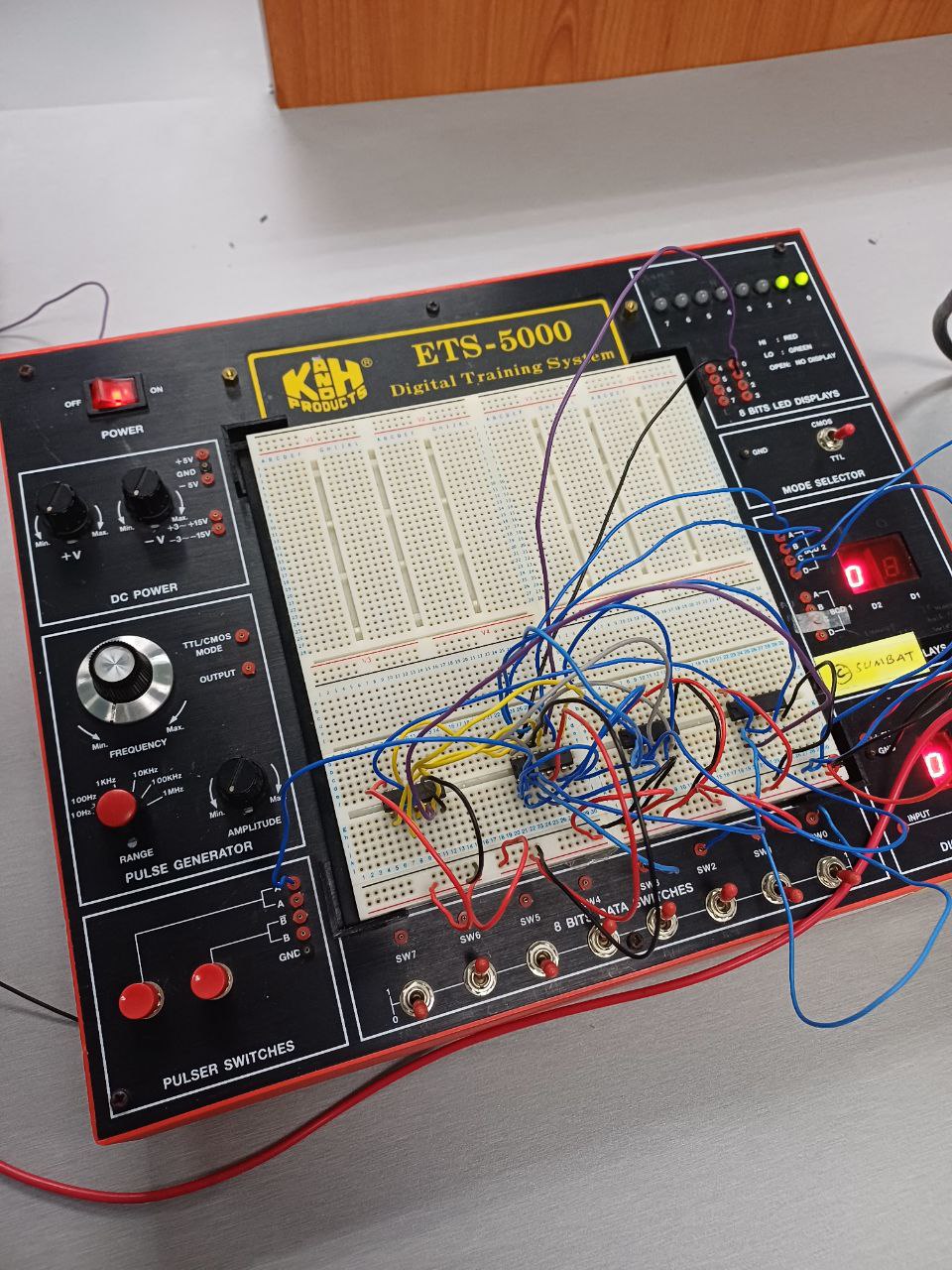

On the day of the lab activity, we're taking quite some time to do the circuit as the making of the circuit on the breadboard ain't easy as doing it in Deeds with the presence of too many wire. After completed our circuit, the result for the digital didn't came out as we predicted therefore we need to change our ETS in making sure that our circuit is successful. Fortunately, our circuit was fully completed after getting the result as we predicted.
